ATXRaspi R3

PRODUCT ID:91
$19.95
25 or more: $14.95
100 or more: $12.95
Out of Stock

Thanks, you will get an email when it's available again!

Fill your email below and we will notify you as soon as the product is back in stock!

Notify Me

Description

ATXRaspi is a smart power controller for RaspberryPi or similar embedded systems running form a 5V input. It allows you to have an external shutdown/reboot button to turn on/off and reset your RaspberryPi or similar system without a need to login or to issue manual shutdown/reboot commands. This is especially useful where your Pi is embedded in a product and requires user intervention to control power.

Default Shutdown/Reboot behavior (note changes in R3):

  • A short press (250ms+) will triggers a shutdown, and a long press (1500ms+) triggers a reboot
  • A continued very long (~6s) press forces cutting power off regardless of system status (BootOK signal HIGH/LOW). For latching switch mode, putting switch in OFF position will issue a SHUTDOWN signal if BOOTOK is HIGH, or will cut power after (~6s) if the BOOTOK is LOW
  • The ATXRaspi is now available with the following functions (default settings: Momentary-Button, Short-Press-Shutdown, Reboot-Enabled):
    • short press (250ms+) triggers a shutdown, long press (1500ms+) triggers a reboot
    • without reboot function, ie long press (1500ms+) triggers a shutdown, and no reboot on short or long press
    • without reboot function and short-press shutdown (250ms+) triggers a shutdown
  • You may request other custom firmware (different delays etc) and we will do our best to meet your needs

New function: Full shutdown/reboot from software via Soft-BTN pin:

ATXRaspi R3 introduces a new function - the ability to reboot/shutdown the unit from software, without the need of additional hardware (like in previous versions). All is needed is a GPIO connection to the Pi or host system, which needs to be asserted (HIGH) for the required delay (depending on the Short-Press-Shutdown setting). Essentially this Soft-BTN, when asserted HIGH, is equivalent to pressing the physical power button. For more details see this page in the guide.

Behavior changes via solder jumpers:

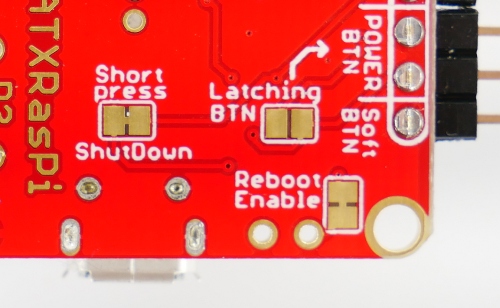

You may use the solder jumpers on the bottom to change the behavior of ATXRaspi. There are 3 settings (solder jumpers):

When ATXRaspi is first powered up, you will notice 3 sequences of RED LED blinks, separated by 0.5s delays. These blinks indicate the state of the settings below, in the following order:

  • Latching-BTN
    • Open (default, 1 blink) - this implies you are using a momentary switch/button (non-latching)
    • Closed (2 blinks) - solder this jumper closed to use a latching switch (ie toggle button or similar)
  • Reset-Enable
    • Closed (default, 1 blink) - reboot is enabled
    • Open (2 blinks) - cut this jumper open to disable the reboot function
  • Short-Press-Shutdown (ignored when Latching-BTN jumper is closed)
    • Closed (default, 1 blink) - short press triggers shutdown, long press triggers reboot
    • Open (2 blinks) - You may cut this jumper open to invert the reboot/shutdown delays (short-press triggers a reboot, long press triggers shutdown - this was the default behavior up until R2.8)
      • ​Errata for Short-Press-Reboot/Long-Press-Shutdown (2 blinks) - instead of cutting the jumper - it requires a 1K resistor soldered from this jumper or from LED+ to 5V (from input 5V) to activate this mode - this will be fixed in next release. Example how this can be achieved in the meantime:

Install, demo and reboot function (R2.6 shown - with short press reboot, long press shutdown):

Technical details and installation:  click here

What you get:

  • ATXRaspi board with separate straight or right-angle male headers (headers not soldered)

Extra add-ons:

  • USB type A output connector (not soldered)
  • 2.1mm input barrell jack (available separately)
  • 8" micro-USB cable to power to your Pi (to be used with the USB-A connector). Can also power ATXRaspi.

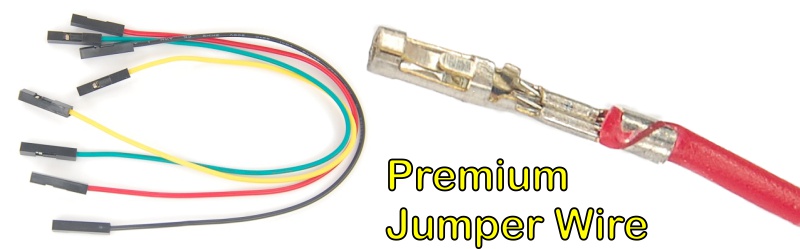

  • Premium high quality jumper wire (4 pack, available separately) - these high quality wires are especially useful for the power pins to avoid low voltage warnings you might see with cheap/poorly crimped jumper wires

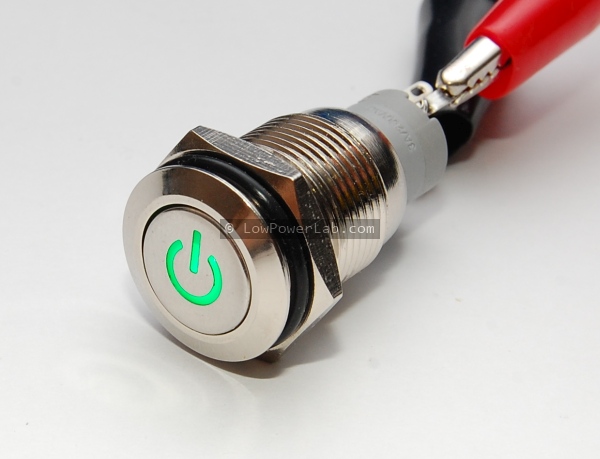

  • High quality (chrome finish) momentary button wih integrated green power symbol light, shown in video above, available separately:

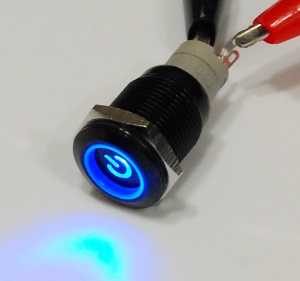

  • High quality (black anodized finish) latching button wih integrated blue power symbol light, available separately:

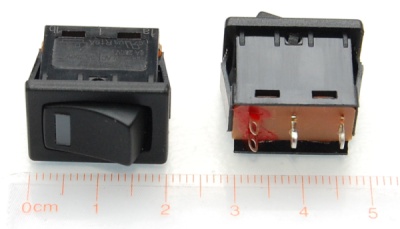

  • High quality (black) latching rocking switch wih integrated green LED, available separately:
