RTCRaspi

PRODUCT ID:162
$8.95
Out of Stock

Thanks, you will get an email when it's available again!

Fill your email below and we will notify you as soon as the product is back in stock!

Notify Me

Description

What it is:

  • RTCRaspi is a Real Time Clock module designed for RaspberryPi (all versions)
  • based on the popular DS1307 i2C real time chip from Maxim (see datasheet here)
  • It works with all DS1307 supported libraries
  • DS1307 chip requires 5V, but will work with 3.3V data lines (plug an play with RaspberryPi)
  • For use with ArduinoUNOs, you will need to bridge the 3.3V and 5V pins (see pinout)
  • Can be used with Moteinos the same way, but you will need a 5V source to power the RTC chip
  • May come in Red or Green (if you have a preference leave a comment at checkout)

What you get:

  • RTCRaspi tested board
  • 2x3 female double length extended header for RaspberryPi
  • CR1220 coin cell

Connections:

  • solder the provided header or an equivalent 2x3 header to the first 6 pins of the side double header
  • make sure the coin battery is inserted into the coin cell slot

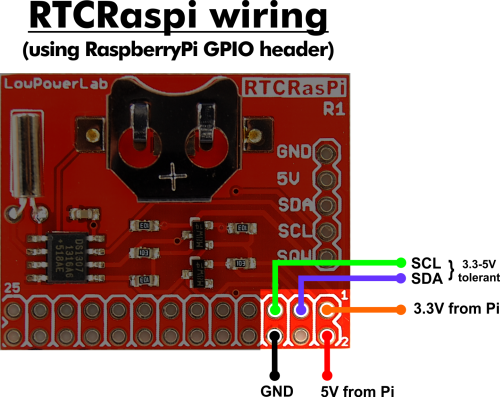

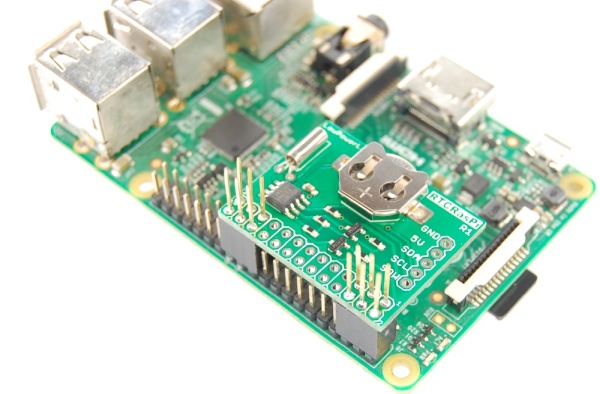

  • connect as shown to your Pi
  • Note: only the first (right most) 6 pins of the double header are actually needed, all other pins are not connected/used in any way









Configuration and usage:

  • See this guide for configuring and using it on your Pi (DS1307 section)

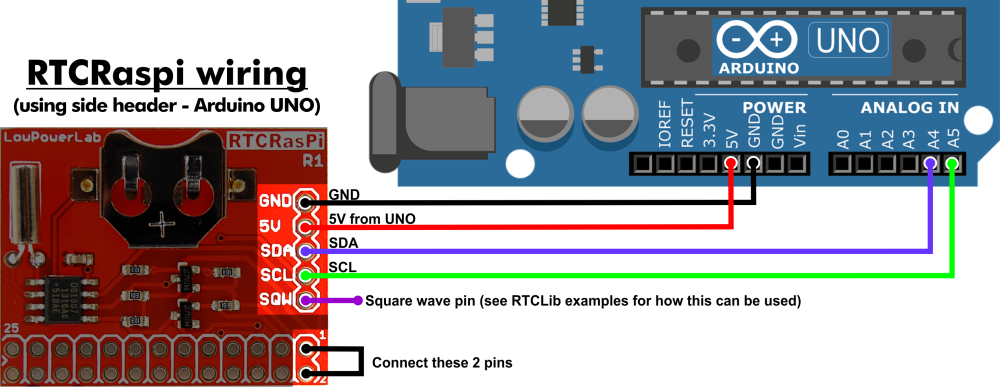

  • For usage with ArduinoUNO or Moteino, connect as shown above, you will need 5V to the 5V pin, and connect the first 2 pins of the double header together
    Then you can use one of the many Arduino libraries that support DS1307, and their examples (ex. adafruit's RTCLib)
