Dipole Antenna 915mhz
PRODUCT ID:193
$2.95
In Stock
Description
What it is:

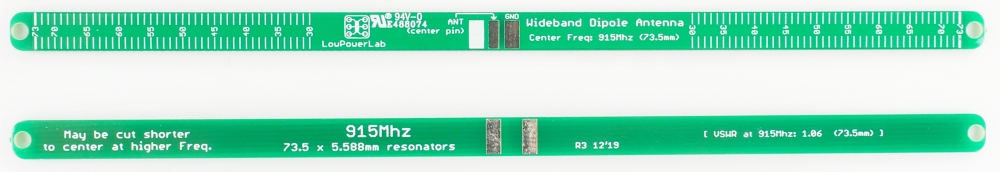

- 915Mhz Trimmed Dipole PCB Antenna (50ohm)
- End-to-End length including mounting holes: 154mm
- Great performance and upgrade from the default wire monopole
- RF coax can be soldered directly to the provided pads (recommended in non modular systems - otherwise connector lengths must be taken into account when calculating feedline)
- This antenna was built on work done by forum users, see these forum threads: original design by Captcha and alternative design by ChemE
- See the RF-Best-Practices Guide on dipole and feedline length theory
- VSWR < 1.1 at 915mhz.
What you get:
- PCB dipole antenna PCB only
- see below for optional SMA connectors and/or RF cable add-ons
Optional add-ons:
- SMA-female connector (not soldered). Note that you will need another SMA-female connector, to mate the other end with a Moteino or other SMA board, available separately.
- SMA-male connector, also available separately
- SMA-male cable, also available separately

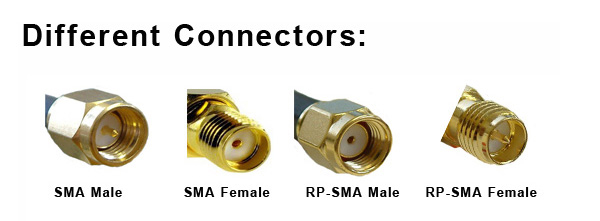

Connector compatibility:
The optional SMA-Male RF coax cable only mates with SMA female connectors!
You can alternatively connect SMA-male connectors directly to SMA-female connectors without a cable in between. This way you can shorten the signal path (minimize loss) and mount the dipole directly to a board, perhaps through the wall of an enclosure.
Using at 915mhz:
- Precut for 915Mhz center frequency, can potentially be cut shorter for higher center frequencies
-
- the arms of the antenna are only on the TOP layer (with mm gradations)
- you could also cut the PCB with a strong pair of wire cutters if you need it to be shorter
- the BOTTOM layer only contains 2 pads for SMA connectors, solder this to the bottom SMA body pins for a stronger bond
- For 868Mhz, use this dipole instead
